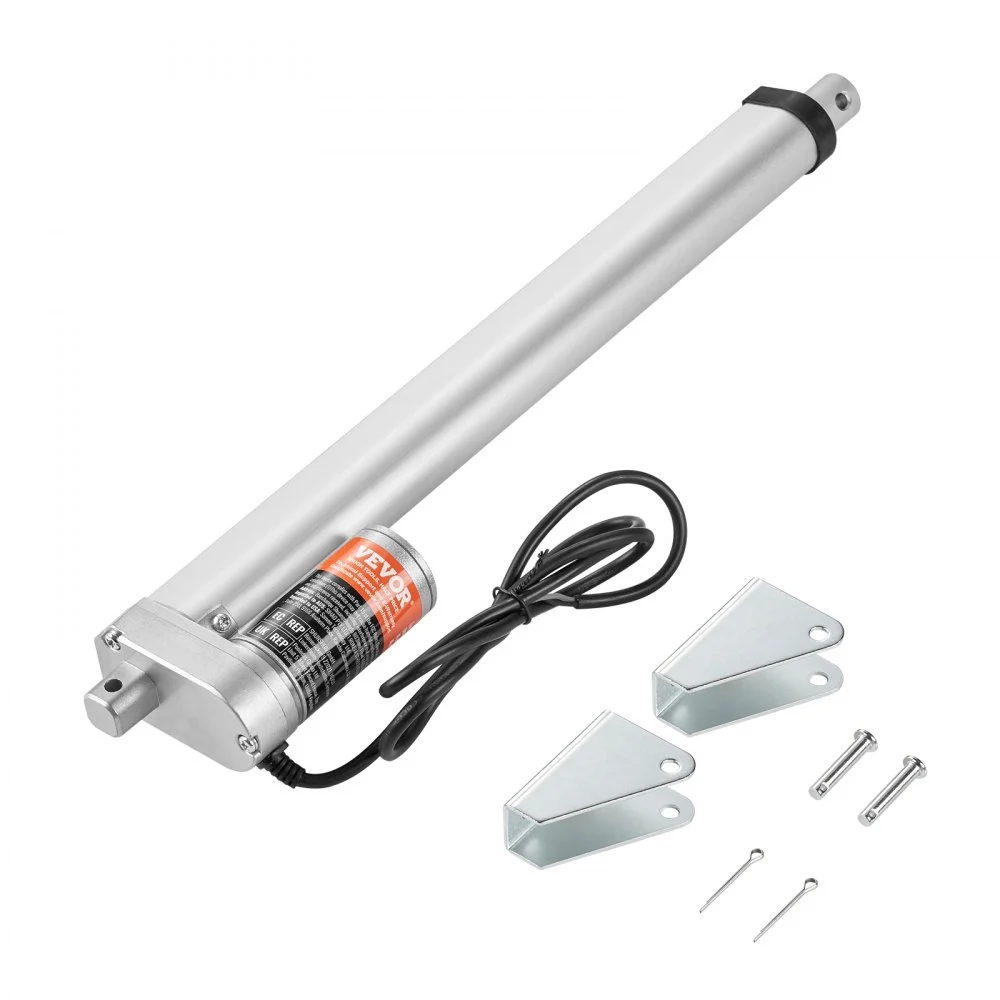

VEVOR Linear Actuator 12V, 12 Inch High Speed 0.55″/s Linear Actuator, 220lbs/1000N Linear Motion Actuator with Mounting Bracket and IP54 Protection

Features & Details

• Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55″/s. Perfect for applications requiring frequent height adjustments, whether it’s altering furniture heights or raising and lowering office desks and chairs.
• Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
• Versatility Unleashed: VEVOR’s 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!
• IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)
• Key Specifications: Stroke Length: 12 inch (300mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 16.73″ (425mm); Extended Length: 28.73″ (725mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

Product specification

• Item Model Number : OK648-1000N
• Rated Voltage : DC12V
• Maximum Load/Actuation Force : 1000N
• Travel Speed :>0.55 inch/s />14mm/s
• Stroke Length : 12 inch / 300 mm
• Protection Class : IP54
