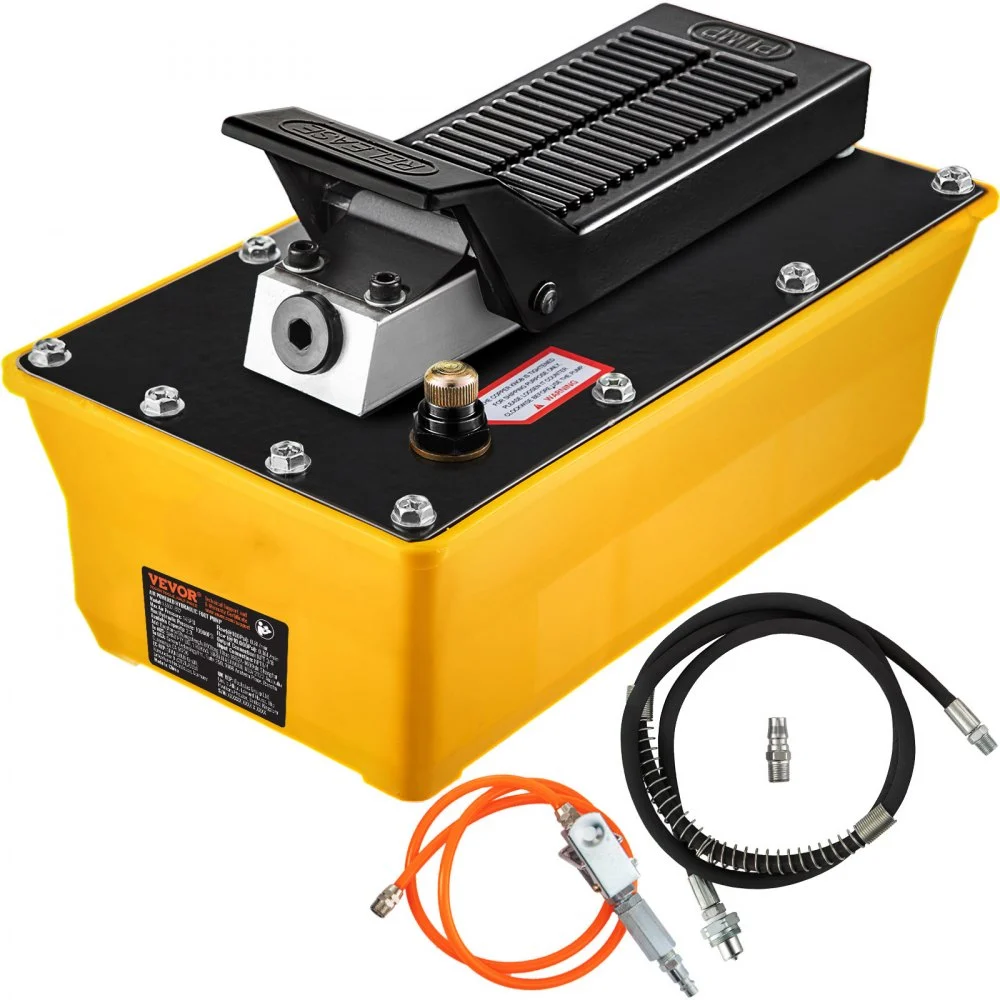

VEVOR Air Hydraulic Pump, 10,000 PSI Hydraulic Foot Pump, 0.6 Gal Reservoir Foot Operated Air/Hydraulic Pump, with Hose and Spray Gun for Heavy Machinery Rigging, Auto Repair, Auto Body Frame Machines

Features & Details

• Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI, which can be used for all 10-ton applications. Output oil hole: 3/8NPTF connection; Intake: 1/4NPT connection; Oil Output Pressure: 70mpa; Pressure Range: 0.7-1MPa.
• Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, which is able to save the operator’s time and effort with strong power and high output pressure.
• Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality plastic shell to handle tough industrial applications. 2.3L oil tank has a larger capacity with 2 liters maximum oil output.
• Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 6.56 ft/200 cm high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included.
• 10,000 PSI for Wide Application: This hydraulic pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. It is a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Product specification

• Model : NAP001
• Fuel Tank Capacity : 2.3L
• Maximum Adjustable Pressure : 10000 psi, 700 kg/square cm
• Maximum Output Oil : 2L
• Output Oil Hole : 3/8” NPTF Connection
• Intake : 1/4” NPT Connection
