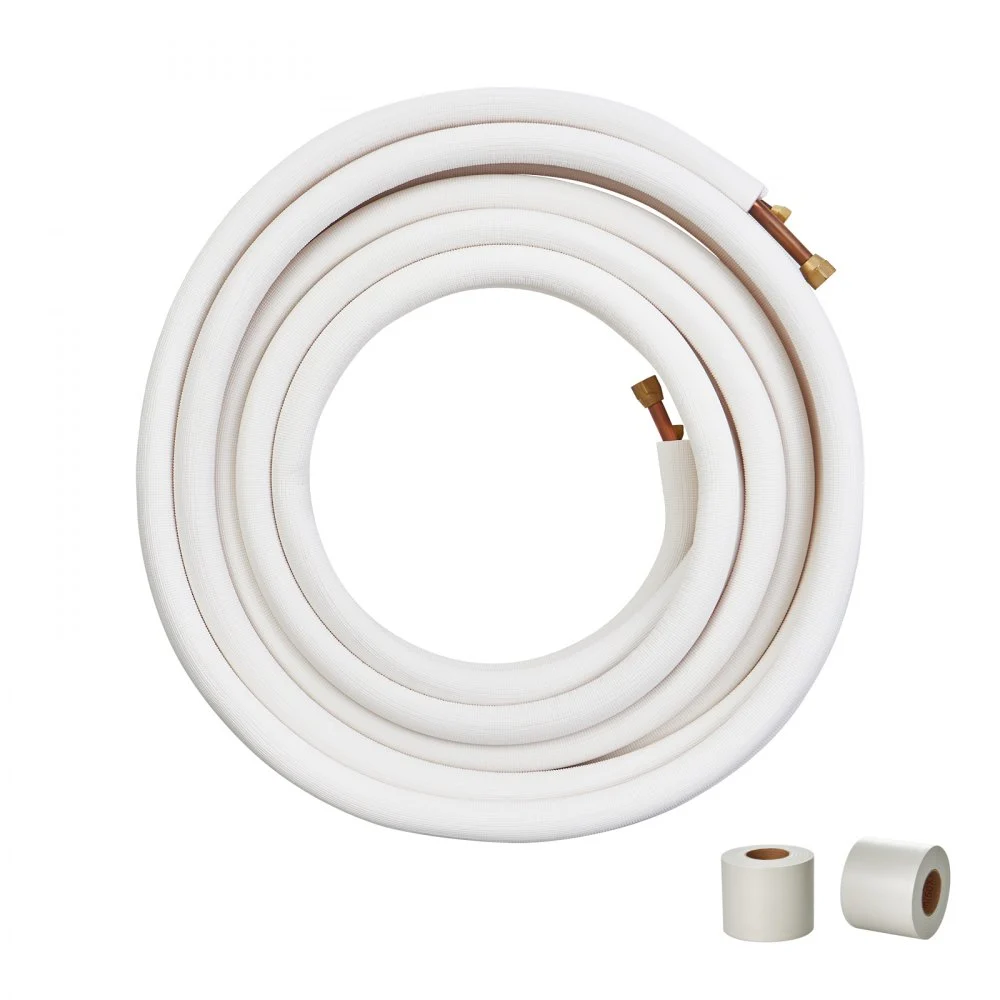

VEVOR 50FT Mini Split Line Set, 3/8″ & 5/8″ O.D Copper Pipes Tubing and Triple-Layer Insulation, for Mini Split Air Conditioning Refrigerant or Heating Pump Equipment & HVAC with Wrapping Strips.

Features & Details

• 50FT Copper Tube: With a length of up to 50ft, the copper tube can easily connect indoor and outdoor units even over long distances without difficulty.
• High and Low Pressure Dual Pipes: Includes 3/8” high-pressure tubes and 5/8” low-pressure tubes, compatible with 18000-26000 BTU split air conditioners, specifically designed for mini-split air conditioning systems.
• Thickened Pure Copper Tube: Utilizes high-quality copper tubes compliant with ASTM standards, meticulously controlling the wall thickness of both high-pressure and low-pressure tubes, providing excellent toughness and hardness, eliminating the frustration of thin copper tubes easily flattening with a single fold.
• Three-layer Insulation Cotton: Wrapped tightly with three layers of insulation cotton, the copper tube sustains effective insulation while being waterproof and pressure-resistant, offering better protection for the internal copper tubes.
• 4-Step Quick Installation: Equipped with 2 tie wraps, installation is extremely simple, requiring only 4 steps to complete, effortlessly connecting indoor and outdoor units.

Product specification

• Model : JSY-SS-SKU6
• Length : 50ft / 15240mm
• High-Pressure Pipe Outer Diameter : 3/8in / 9.53mm
• Low-Pressure Pipe Outer Diameter : 5/8in / 15.875mm
• Net Weight (Including all Accessories) : 18.07lb / 8.2kg
• Overall Dimensions (L x W x H) : 24.8×24.8×7.08in / 630x630x180mm
