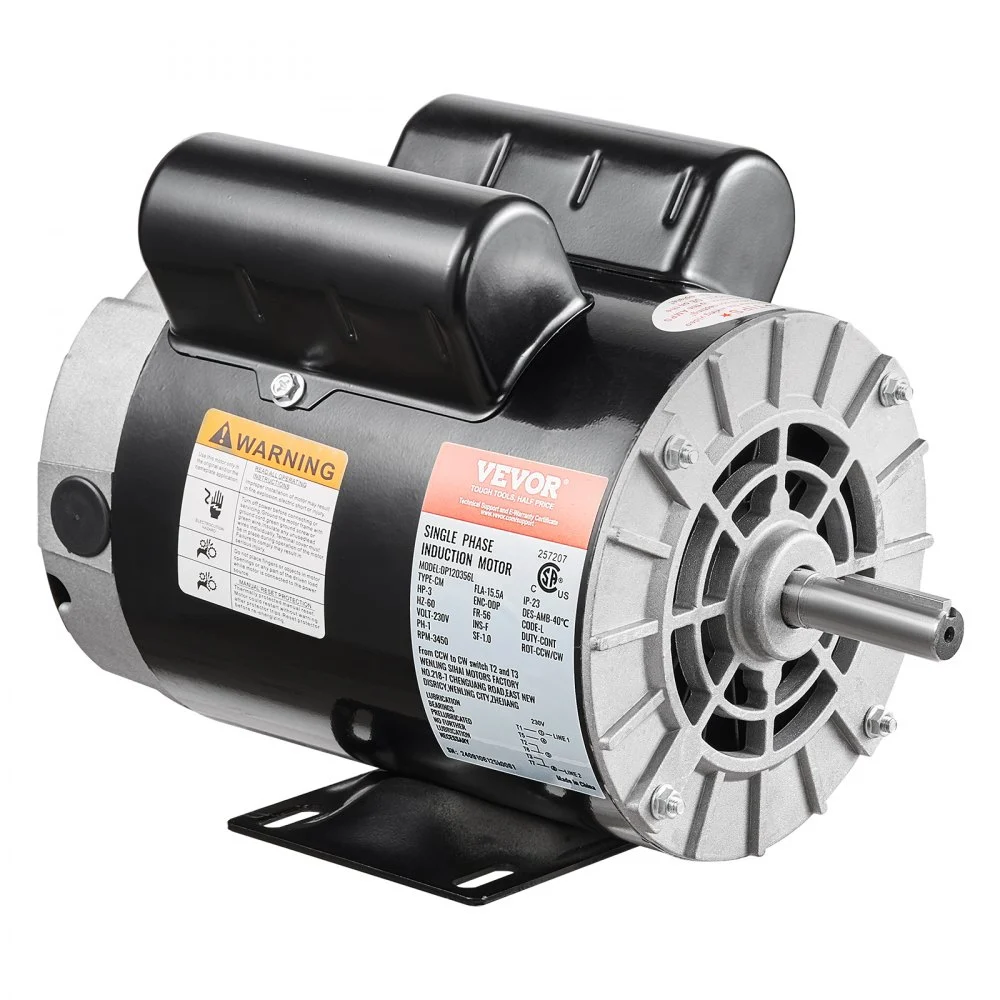

Features & Details
- High Performance: 3HP 3450 RPM, Single Phase, Full Load Amps: 15.5Amp, 230V 60Hz, SF: 1.0.
- Frame Type: 56 Frame, 5/8″ Keyed shaft, 1.88″ Shaft length, 0.188″ Keyway Size.
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 40 amps.)
Product specification
- Item Model Number : DP120356L
- Voltage : 230V
- Frequency : 60HZ
- Current : 15.5A
- Rotation Speed : 3450rpm
- SF : 1.0
