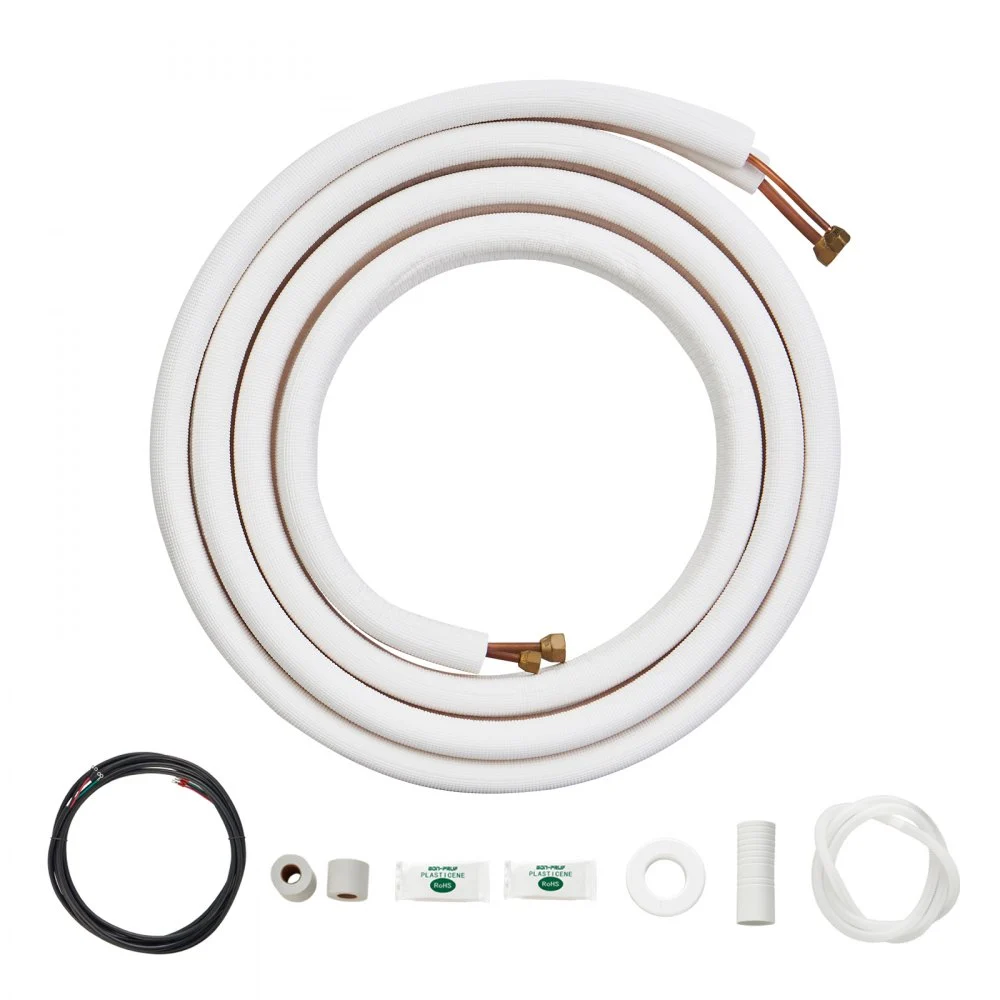

VEVOR 16FT Mini Split Line Set, 1/4″ & 3/8″ O.D Copper Pipes Tubing and Triple-Layer Insulation, for Air Conditioning or Heating Pump Equipment & HVAC with Rich Accessories (18ft Connection Cable)

Features & Details

• 16FT Copper Tube: With a length of up to 16ft, the copper tube can easily connect indoor and outdoor units even over long distances without difficulty.
• High and Low Pressure Dual Pipes: Includes 1/4” high-pressure tubes and 3/8” low-pressure tubes, compatible with 0-12000 BTU split air conditioners, specifically designed for mini-split air conditioning systems.
• Thickened Pure Copper Tube: Utilizes high-quality copper tubes compliant with ASTM standards, meticulously controlling the wall thickness of both high-pressure and low-pressure tubes, providing excellent toughness and hardness, eliminating the frustration of thin copper tubes easily flattening with a single fold.
• Three-layer Insulation Cotton: Wrapped tightly with three layers of insulation cotton, the copper tube sustains effective insulation while being waterproof and pressure-resistant, offering better protection for the internal copper tubes.
• Multiple Installation Accessories: Comes with connecting cables, drainage pipes, 2 tie wraps, decorative covers, wall sleeves, 2 sealant putties, and other accessories, making installation easy without the need for welding.

Product specification

• Model : JSY-SS-SKU7
• Length : 16ft / 4876.8mm
• High-Pressure Pipe Outer Diameter : 1/4in / 6.35mm
• Low-Pressure Pipe Outer Diameter : 3/8in / 9.53mm
• Net Weight (Including all Accessories) : 6.39lb / 2.9kg
• Overall Dimensions (L x W x H) : 20.86×19.68×2.36in / 530x500x60mm
