Features & Details
- 30/50 PSI Pressure Switch: Experience robust water flow with our advanced 30/50 PSI pressure switch. This high-pressure range ensures stronger water flow for demanding applications while reducing pump cycling. Less frequent starts mean extended shallow well pump life and efficient performance for your high-pressure needs.

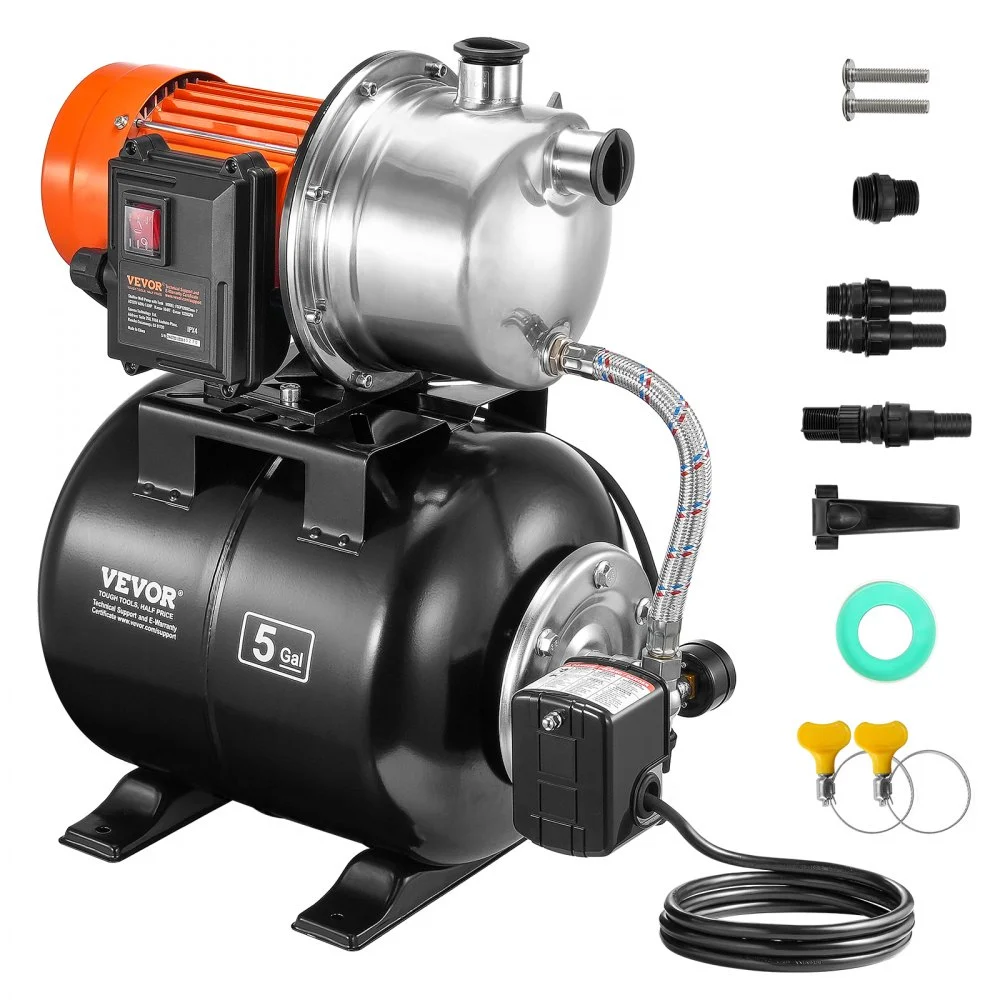

- High-Efficiency Water Transfer: Equipped with a 1.6HP (1176W) motor, our shallow well pump with pressure tank delivers a maximum flow rate of 1320 GPH (5600 L/H), a head lift of up to 164 FT (50 M), and a suction depth of 26.3 FT (8 M). Ideal for long-distance water delivery with impressive efficiency.
- Built to Last, Reliable Performance: The water pressure booster pump head is crafted from 304 stainless steel, renowned for its corrosion resistance and lack of water contamination, ensuring a clean water source. The 5-gallon (19-liter) steel pressure tank features a smooth, electrostatic finish for enhanced durability and resistance to corrosion and stains.
- Enhanced Protection for Peace of Mind: Our pump includes built-in thermal overload protection that automatically shuts down the motor if temperatures exceed safe levels, preventing damage from overheating. Additionally, a rear-mounted fan and large cooling vents provide effective heat dissipation to keep the pump running smoothly.
- Thoughtful Designed Accessories: To avoid backflow and maintain stable water pressure, we include a check valve with your shallow well pump. This ensures a hassle-free setup—simply connect your hoses and start using your pump right away. (Note: For first-time use, make sure to fill the pump with water through the discharge port to avoid damage from running dry.)
Product specification
- Item Model Number : FSGP1200Cinox-2
- Maximum Horsepower : 1.6 HP / 1176W
- Maximum Flow Rate : 1320 GPH / 5600 L/H
- Head Lift & Suction Lift : 164 ft / 50 m & 26.3 ft / 8 m
- Inlet/Outlet Caliber : 1” NPT
- Pressure Tank Capacity : 5 Gallons / 19 Liters
