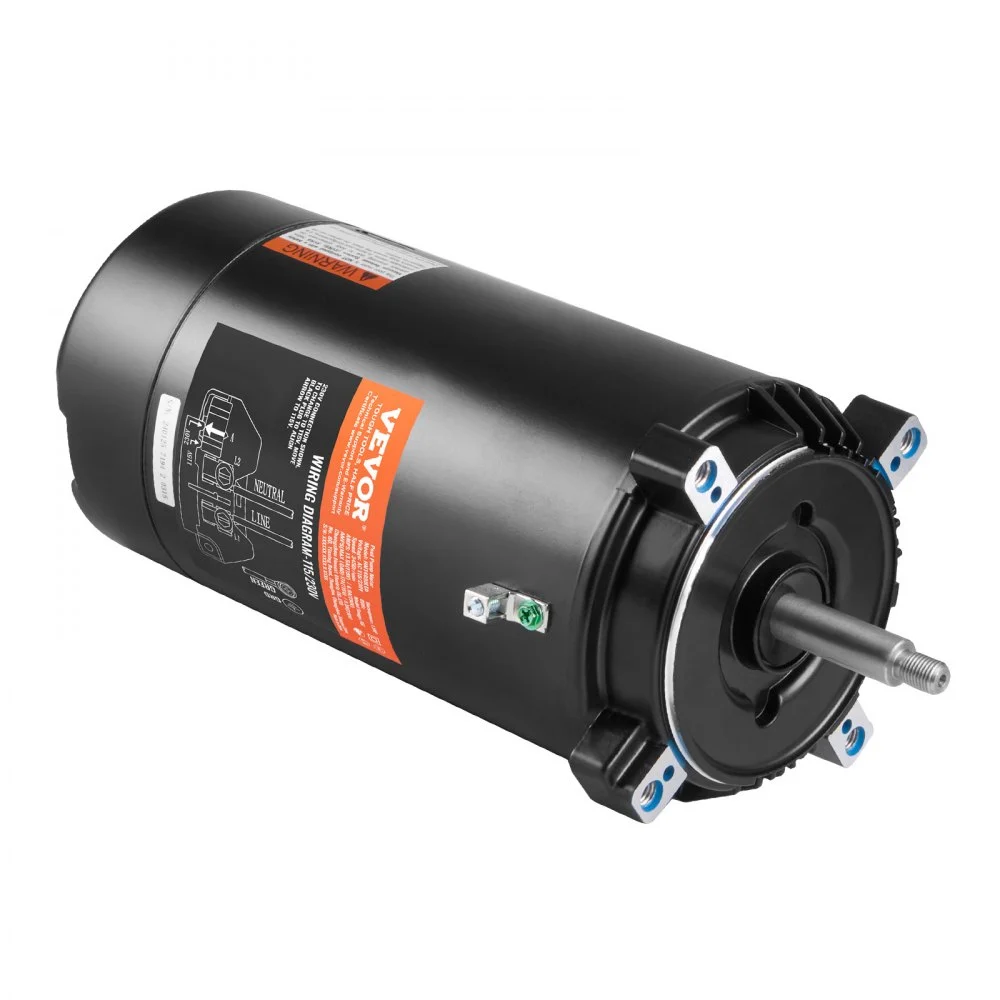

VEVOR 1.5 HP Pool Pump Motor, 56J Frame, 115V(13.6 Amps)/230V(6.8 Amps) 3450 RPM, 60Hz, 1.3 Service Factor, 90μF/250V Capacitor, CCW Rotation Round Flange Replacement Motor

Features & Details

• Reliable Performance: VEVOR 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage – AC 115/230V; Amps: 13.6/6.8A ; Amps (Max Load): 17/8.5A ; SF: 1.3 ; Capacitor: 90μF/250V ; Model Flange: 56J.
• Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft extension. Get detailed installation instructions with the included user manual.
• Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.
• High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 65db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
• Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools – from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

Product specification

• Item Model Number : HM14095LCb
• Voltage : AC 115/230V
• Capacitor : 90μF/250V
• Horsepower : 1.5 HP
• Current : 13.6A(115V) / 6.8A(230V)
• Current (Max Load) : 17A(115V) / 8.5A(230V)
