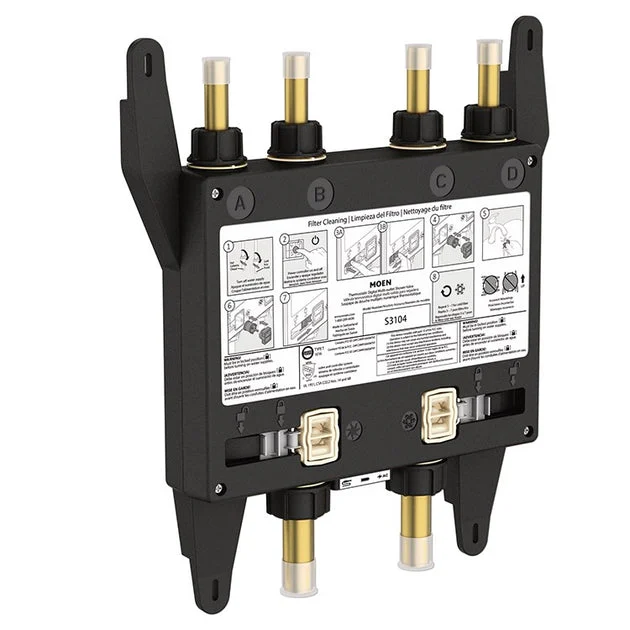

This U by Moen four-outlet digital thermostatic shower rough-in valve is designed for use with the TS3304TB digital shower controller. Allows you to customize and control the temperature, time, and flow of your shower. A smart phone app available for iOS and Android provides increased user personalization of the shower.
The valve is set with a factory default maximum temperature setting of 115 degrees F (46 degrees C) with adjustability through the app up to 120 degrees F (49 degrees C). Designed to deliver 14 gpm (34 L/min) at 45 psi unrestricted total flow through all outlets and 6 gpm (22.7 L/min) at 45 psi unrestricted on any one outlet. Flow rates are applicable when installed on a pressure balanced dedicated supply.
- Must be used with the TS3304TB digital shower controller
- 3/4″ CC inlet connections and 1/2″ CC outlet connections
- Valve must be installed in an area that has an access panel
- GFCI electrical outlet with continuous power (120V/60Hz) required
- Water supply minimum incoming pressure of 20 psi
Specifications
| Model Number | S3104 |
|---|---|
| Product type | Digital Thermostatic 4 Port |
| Size | 3/4 and 1/2 IN |
| End connection | CC |
| Flow rate | 14 GPM |
| Used on | TS3304TB |
| Length | 17-1/4 IN |
| Width | 17-1/4 IN |
| Height | 2-4/5 IN |
| Style | Modern |
| Collection | U by Moen |
