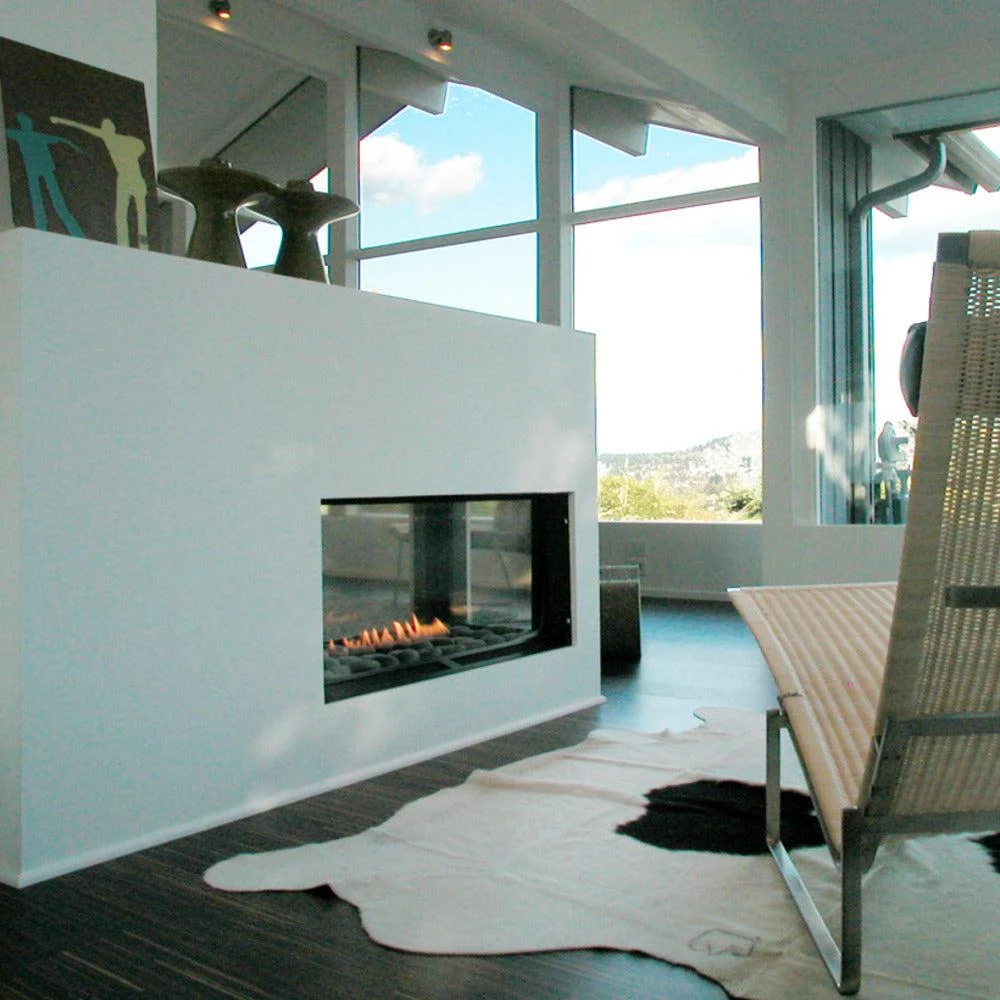

Three exposed sides make way for endless possibilities and limitless choices with this modern fireplace. A natural divider to any space, this design lets you gather close to enjoy the glow of our unmistakable flame from every dimension.
Features
- Signature Fire Ribbon design technology.
- Fixed glass windows bleed into an invisible edge, allowing for surround customization.
- Installs quickly and easily.
- It goes anywhere it can vent to the outside through a roof or an exterior wall.
- Needs neither a chimney nor a hearth.
- Draws air from the outside-in, so there’s no drafts and no heat loss.
- Up to 80 percent efficiency rating.
- Mandatory safety screen.
- Heating capacity enhanced with integrated fan.
- Accepted by all major building and mechanical codes in the U.S. including the IMC and the UMC.
- Approved in all 50 states and Canada.
- Approved for bedrooms, bathrooms and all common rooms.
- Requires vent through roof or exterior wall.
Specifications
| Model | 92E-NG |
| Viewing Area | 36.33″ W x 17″ H |
| Exterior Dimension | 52.5″ W x 32″ H x 24″ D |
| Framing Dimension | 52.75″ W x 40.5″ H x 22.75″ D |
| Fuel Type | Natural Gas |
| Gas Connection | 1/2″ pipe |
| Controls | Programmable/Thermostatic Remote Control Standard |
| Efficiency | Up to 80% |
| Venting Options | Through Exterior Wall or Vertical Through Roof. |
| Vent Type | Direct Vent |
| Fan/CFM | Thermostat activated 160 CFM |
| Voltage | 110V |
| BTU/hr | 27,000 – 39,000 |
| Certifications | Omni-Test Laboratories ANSI Z21.88-2014, CSA 2.33-2014 CGA 2.17- M91 (R2009), CSA P. 4.1-09 (R2014) |
| Interior Color | Satin Black |
