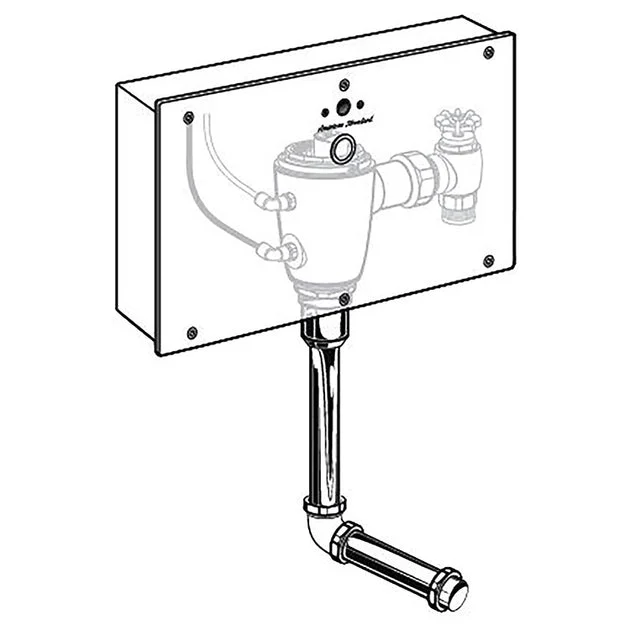

Selectronic Concealed Sensor-Operated Urinal Flush Valve Base with Wall Box

The Selectronic concealed sensor-operated urinal flush valve from American Standard helps to save the most water, with a maximum flow rate of 0.5 gallons per flush, without sacrificing performance. A convenient proximity sensor makes using the urinal flush valve easy, clean, and effective.
This flush valve is designed for use with 3/4″ back spud urinals. Exclusive pressure compensation feature eliminates the need for the installer to adjust the stop valves, saving time, and money, and ensuring water savings. The valve has self-cleaning piston operation with integral wiper spring prevents clogging and reduces maintenance, chemical-resistant EPDM seals, a stadium feature that automatically to water-conservation mode during periods of heavy usage, and a sanitary flush feature that automatically flushes after 24 hours of non-use to clean the fixture and maintain the trap seal. Comes with a vandal-resistant, stainless steel wall box with front access, The wall plate with sensor measures 15-7/8″ wide x 11″ high.
Includes a 3/4″ IPS angle stop with backflow protection and hand wheel, 3/4″ sweat solder adapter, and a 3/4″ vacuum breaker with spud coupling and flange. Does not include the power supply. Power kits options PK00.CRP, PK.WRK, PK00.PAC, PK.MAC, and PK00.HAC are sold separately.

• 0.5 gpf
• Proximity system for hygienic hands-free operation
• State-of-the-art electronics prevent ghost flushing
• For back spud urinals
• Adjustable tailpiece for rough-in flexibility
• Manual override allows flushing during power outages
• Chrome plating on exposed parts
• Dezincification-resistant semi-red brass alloy
• Includes wall box with front access
• Requires power kit sold separately

Specifications
