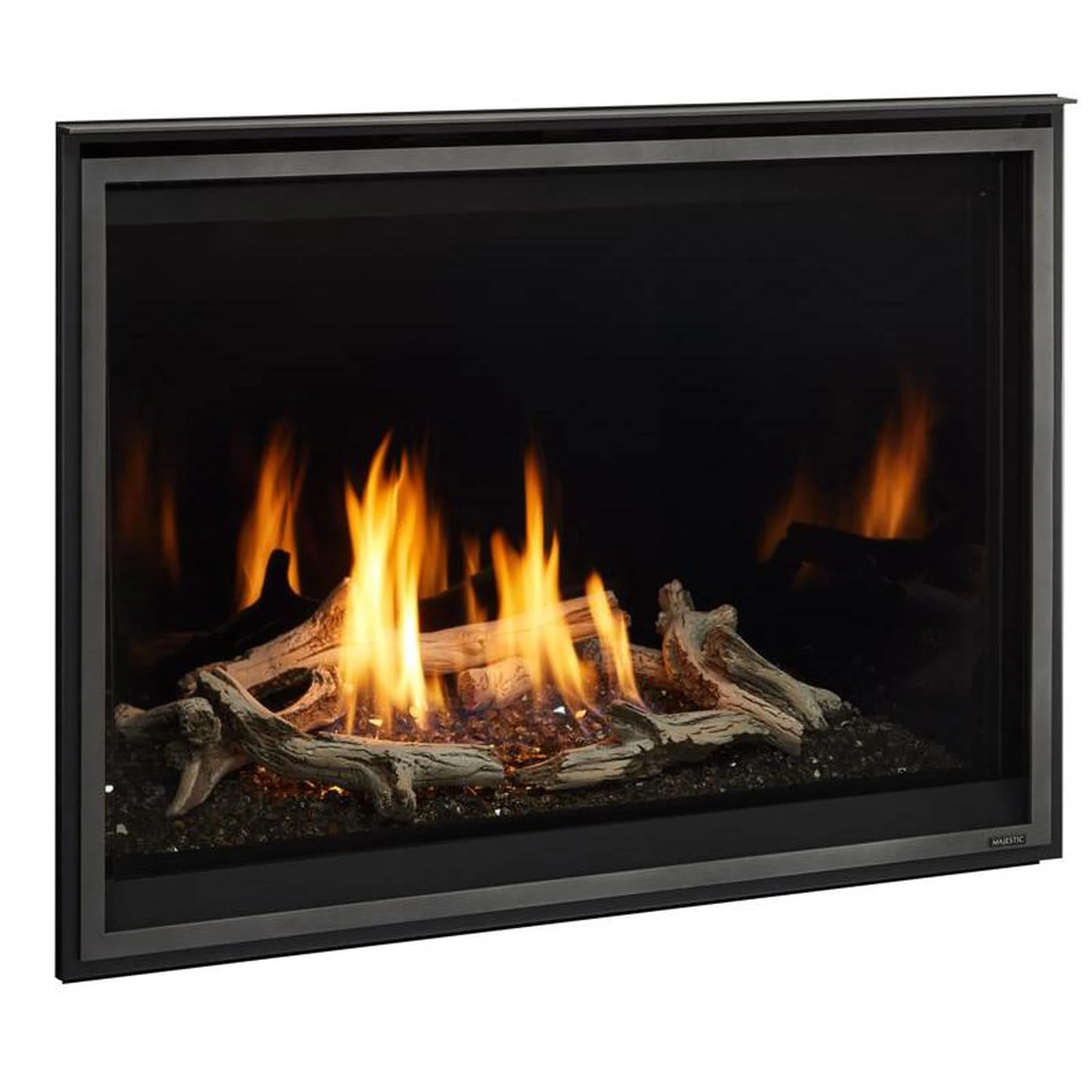

Welcome to your favorite spot in the home. Our Modern version has a glass-media ember bed and offers Driftwood logs or stones, plus trim options, to complete your look. Gather ’round dancing flames and manage the warmth year-round. Even run it with a smart speaker.
What’s Included
- NG Fireplace Unit
- Ceramic Glass
- Junction Box
- 2 Sided Black Ceramic Glass Liner
- 12 ft Wall Switch Wire
- Battery Backup
- IntelliFire Touch ignition system
Not Included
- Front (Required to Completed)
- 10 Lbs. Crushed Glass Media (Required to Complete)
- Gas Logs & Log Sets
- Fan Kit
- Natural Stones (Must use with Crushed Glass Media)
- Heat Management
- Note: Flame adjustment requires RC400 or IFT-WFM
Features
- 36″ and 42″ widths for a more contemporary feel
- Direct Vent Technology – Removes any fumes or combustion exhaust efficiently and effectively from your home.
- IntelliFire Touch – Control your fireplace with IntelliFire App, Smart Speaker, touchscreen remote control or wireless wall switch.
- Modern Design – Fits your decor with clean lines and a sleek look that are on-trend with today’s contemporary home.
- Dynamic Thermostat – Tapers flames with rising temps to maintain comfort level.
Heat Management – Put the heat where you want it, when you want it.
Venting Notes
- Requires 8″ DVP pipe. Must have a 6″ minimum vertical vent before attaching a 90 degree elbow to the fireplace. See Venting section.
- Approved for use with SLP pipe. Restrictions apply. See Installation manual for venting specifications.
- Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness and IFT-RC400 remote (order separately). See venting section of manual.
Specifications
| Model | Meridian 36 Gas Fireplace |
| Fuel Type | Natural Gas |
| Viewing Area | 34-1/4″ x 24-3/4″ |
| Heating Capacity² | Up to 1,200 sq.ft. |
| BTU/hr Input | 17,000 – 34,000 |
| Unit Width | 41″ |
| Unit Height | 39-7/8″ |
| Unit Depth | 21-1/2″ |
| Framing Width | 42″ |
| Framing Height | 40-1/8″ |
| Framing Depth | 22″ |
| Framing Front Width | 42″ |
| Framing Back Width | 42″ |
Technical Dimensions
| Unit | Framing | |
| Front Width (A) | 41″ (1041mm) | 42″ (1067mm) |
| Back Width (B) | 28-3/8″ (721mm) | 42″ (1067mm) |
| Height (C) | 40-7/8″ (1038mm) | 40-1/8″ (1019mm) |
| Depth (D) | 21-7/16″ (545mm) | 22″ (559mm) |
| Viewing Area (E x F) | 34-1/4″ x 24-3/4″ (870mm x 629mm) |
