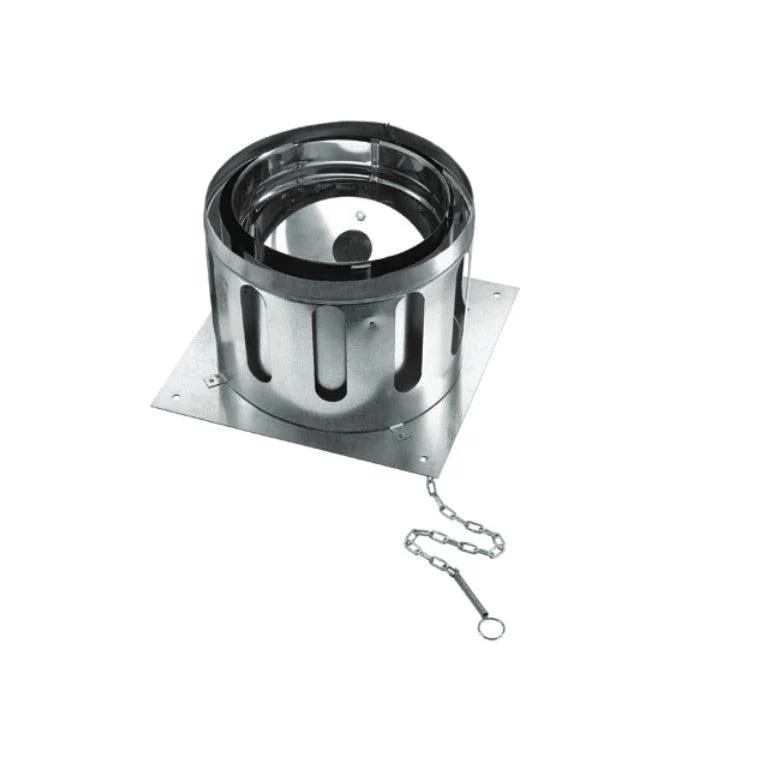

DuraChimney® II is an exceptional factory-built alternative to pre-fabricated masonry chimneys. DuraChimney® II is a unitized, lightweight design which eliminates the need for field assembly of pipe sections, allowing for faster installation.
DuraChimney® II is designed to stay cool on the outside, to provide a hot draft on the inside and to provide a fire-safe design that protects both the chimney and the building.
The double-wall, air-cooled design allows the chimney to expand both radially and lengthwise under high temperatures.
DuraChimney® II is tested and listed for continuous operation at 1000°F flue gas temperatures, one hour at 1400°F and ten-minutes at 1700°F, in accordance with the UL 103 test standard.
What’s Included
- Anchor Plate
- Damper
- Chain and Lintel Hook
Features
- Use as a starter section for DuraChimney II.
- Bolts directly to the fireplace outlet.
- Damper section allows the chimney to be closed when the fireplace is not in use.
- Includes chain and lintel hook.
Specifications
| Model | 14DCA-APD |
| Product Type | Anchor Plate w/ Damper |
| Venting Model | DuraChimney II |
| Size | 14″ |
| A | 14” |
| B | 17” |
| C | 19” |
