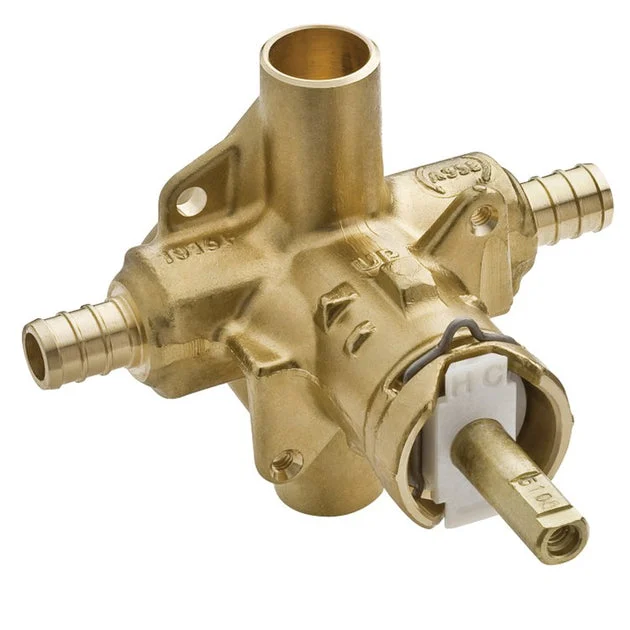

Changing the look of your bath has never been faster and easier. The M-PACT Common Valve System allows you to upgrade the trim style or swap out finishes on your fixtures without replacing the valves. So once the system is in place, you can change your decor as often as you want at any point in time – during construction process or years down the road. All it takes is a few minutes. Best of all, the M-PACT Common Valve System is as easy to install as a standard valve. This pressure balancing cycling rough valve with stops is designed for use with Moen Posi-Temp tub and shower trims.
- Brass construction
- Pressure balancing valve design with 1/2″ PEX, CPEX, or CC
- Adjustable temperature limit stop to control maximum hot water temperature
- Pressure balancing mechanism maintains selected discharge temperature to +/- 3 degrees
- 1222 cartridge design
- Accommodates back to back installations
- Connection size: 1/2″
- Connection type: crimp ring PEX with CC/IPS tub outlet
- Number of ports: four
- Valve meets ASSE performance requirements
Repair Parts
Specifications
| Model Number | 62380 |
|---|---|
| Product type | 4 Port Pressure Balancing |
| Size | 1/2 IN |
| End connection | PEX |
| Material | Brass |
| Length | 15-1/8 IN |
| Width | 10-1/4 IN |
| Height | 11-3/8 IN |
| Collection | M-Pact |
