Features & Details

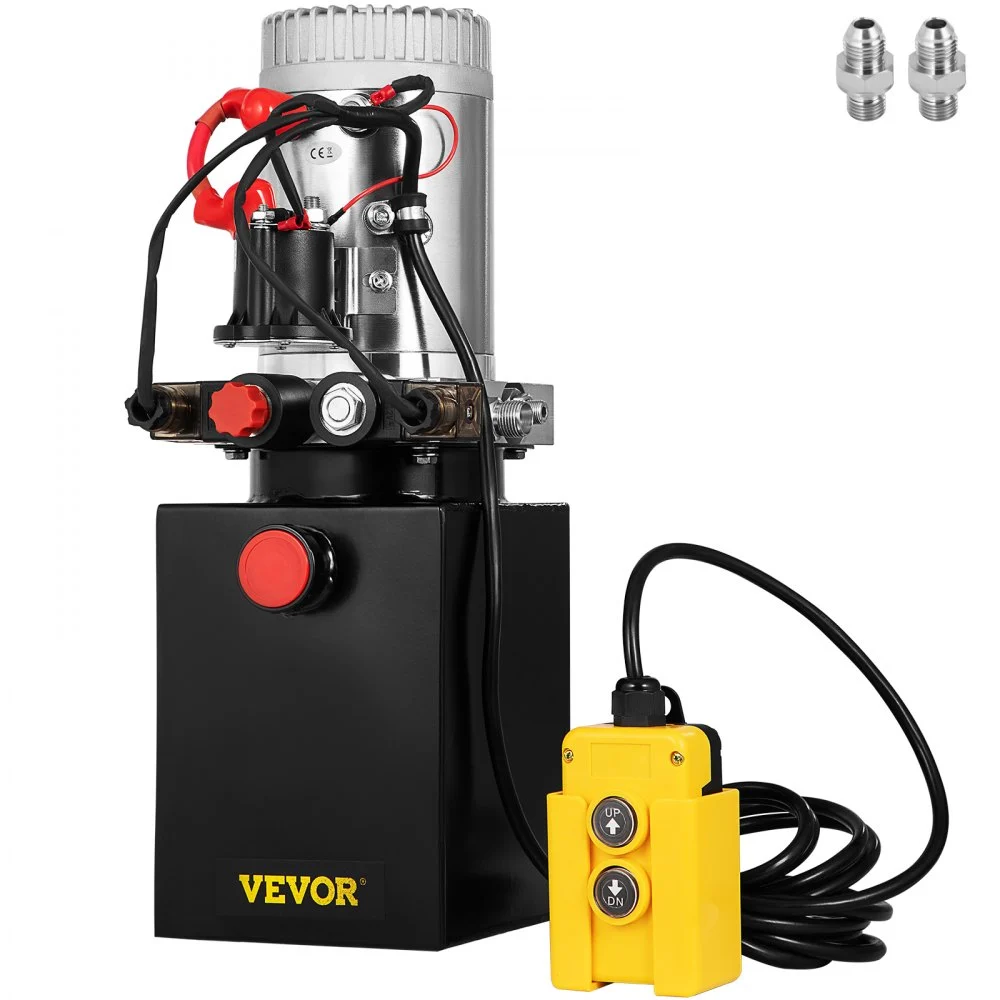

- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Product specification
- Tank Material : Metal
- Displacement of hydraulic pump : 0.825GPM
- Pressure relief valve : 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
- Rated speed : 2850R/MIN
- Motor power : 1.6-3.0KW
- Motor voltage : DC12-DV24
