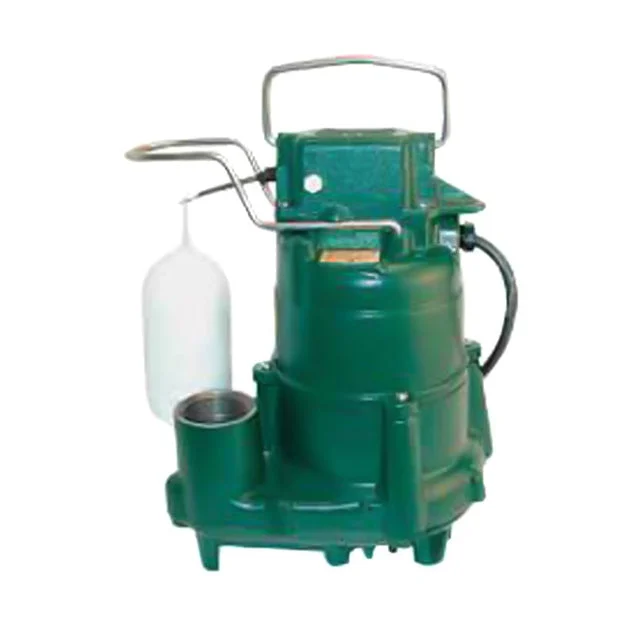

This Flow-Mate model 98 submersible pump is ideal for sump, effluent, and dewatering applications in septic tanks, low pressure pipe, and enhanced flow STEP systems. The durable cast iron housing has a corrosion-resistant, powder-coated epoxy finish with stainless steel screws, guard, handle, arm, and seal assembly. The vortex type impeller can pass up to 1/2″ solids. Powered by a hermetically sealed permanent split capacitor motor, the sump pump features a float-operated, 2-pole mechanical switch, and 15-foot cord.
- No screens to clog
- 1-1/2″ discharge
- Max. on: 9-1/2″/min. off: 3″
- Measures 10-1/8″ wide (major width) x 12″ high
Specifications
| Model Number | 98-0001 |
|---|---|
| Product type | Automatic Effluent |
| Flow rate | 72.0 GPM |
| Horsepower | 1/2 HP |
| Voltage | 115 V |
| Phase | 1 |
| Frequency | 60 Hz |
| End connection | 1-1/2 IN NPT |
| Material | Cast Iron |
| Motor type | Permanent Split Capacitor, Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protection |
| Solid size | 1/2 IN |
| Discharge head | 5 FT |
| Application | Septic Tank, Low Pressure Pipe and Enhanced Flow Step Systems |
| Collection | Flow Mate |
