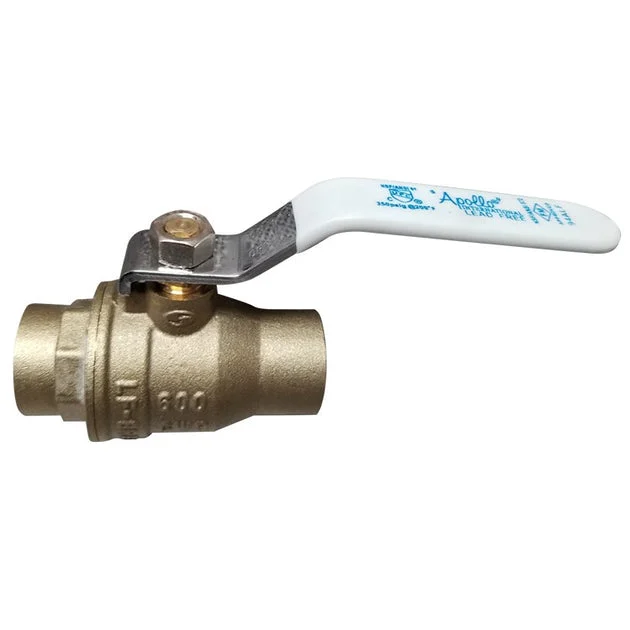

With multi-agency approvals, the Apollo 94ALF-200 Series forged brass ball valves are ideal for flow control applications including gas, fuels, fire protection and general plumbing and HVAC applications including potable water. The valves are ANSI 3rd party Lead Free certified. This 1″ two-piece, full port ball valve features corrosion-resistant brass construction with a standard lever handle. Rated for 600 CWP (psig).
The 94ALF-200 valves are designed to be soft soldered into lines without disassembly. This allows a tested valve to be installed without disturbing the seats and seals in any way. Soldering temperature is not to exceed 500 degrees F.
- Lead free, ANSI 3rd Party certified
- Full-port
- Blow-out proof stem design
- Adjustable stem packing nut
- Silicone free
- 100% factory tested
Specifications
| Model Number | 94ALF20501A |
|---|---|
| Product type | 2-Piece |
| Size | 1 IN |
| End connection | Solder |
| Material | Lead Free Brass |
| Port type | Full Port |
| Pressure | 600 CWP |
| Handle type | Lever |
| Origin | Import |
| Seal material | PTFE |
| Temperature | 0-400 DEG F |
| End to end distance | 3.31 IN |
| Application | HVAC and Gas Services |
| California residents | Warning: Prop65 Information applies. California Proposition 65 Warning |
| Collection | 94ALF-A |
