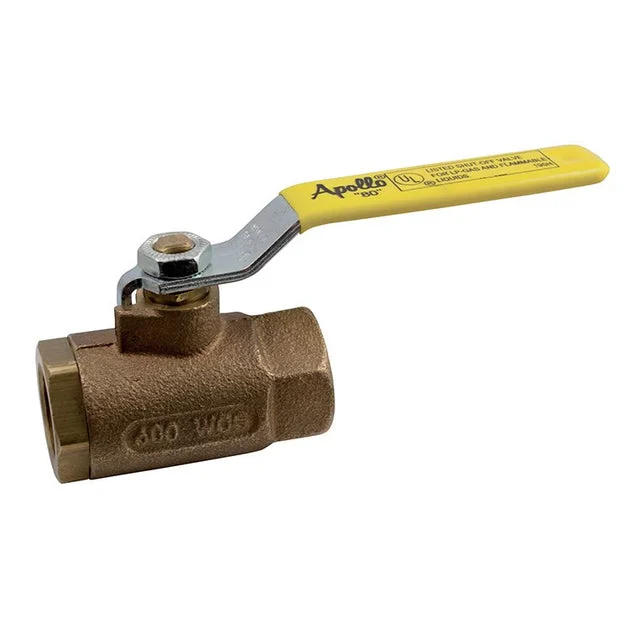

The Apollo 80-100 Series two-piece, standard port ball valve features corrosion-resistant bronze construction with a standard lever handle. Rated for 600 CWP (psig), cold non-shock, 250 psig for LP gas, and 150 psig for saturated steam. Features female NPT threads for use with male threaded pipes. Vacuum service to 29 inches Hg. This 3/4″ valve is MSS SP-110 compliant.
- UL Listed for LP-Gas, natural gas, flammable liquid and heated oil
- Large ports to reduce pressure drop
- Reinforced seats
- Blow-out-proof stem design
- Adjustable packing gland
- Two-piece bronze body
- Guide YSDT: LP-Gas shut-off valve
- Guide YRPV: Gas shut-off valve for use with natural and manufactured gases
- Guide YRBX: Flammable liquid shutoff valve
- Guide MHKZ: No. 6 oil at 250 degrees F
Specifications
| Model Number | 8010401 |
|---|---|
| Product type | UL Listed LP Gas |
| Size | 3/4 IN |
| End connection | Female |
| Material | Bronze |
| Port type | Standard Port |
| Pressure | 600 PSI |
| Handle type | Lever |
| Piece | 2 |
| Seal material | RPTFE |
| End to end distance | 3.00 IN |
| California residents | Warning: Prop65 Information applies. California Proposition 65 Warning |
| Collection | 80-100 |
