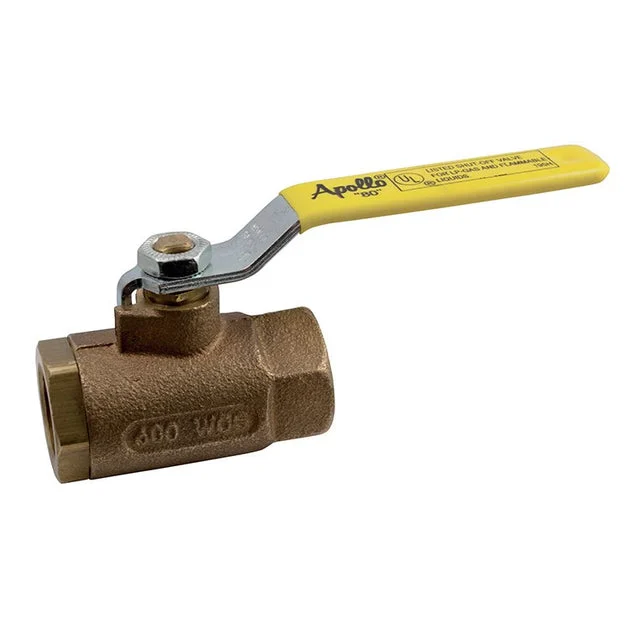

The Apollo 80-100 Series two-piece, standard port ball valve features corrosion-resistant bronze construction with a standard lever handle. Rated for 600 CWP (psig), cold non-shock, 250 psig for LP gas, and 150 psig for saturated steam. Features female NPT threads for use with male threaded pipes. Vacuum service to 29 inches Hg. This 1″ valve is MSS SP-110 compliant.
- UL Listed for LP-Gas, natural gas, flammable liquid and heated oil
- Large ports to reduce pressure drop
- Reinforced seats
- Blow-out-proof stem design
- Adjustable packing gland
- Two-piece bronze body
- Guide YSDT: LP-Gas shut-off valve
- Guide YRPV: Gas shut-off valve for use with natural and manufactured gases
- Guide YRBX: Flammable liquid shutoff valve
- Guide MHKZ: No. 6 oil at 250 degrees F
Specifications
| Model Number | 8010501 |
|---|---|
| Product type | UL Listed LP Gas |
| Size | 1 IN |
| End connection | Female |
| Material | Bronze |
| Port type | Standard Port |
| Pressure | 600 PSI |
| Handle type | Lever |
| Piece | 2 |
| Seal material | RPTFE |
| End to end distance | 3.37 IN |
| California residents | Warning: Prop65 Information applies. California Proposition 65 Warning |
| Collection | 80-100 |
