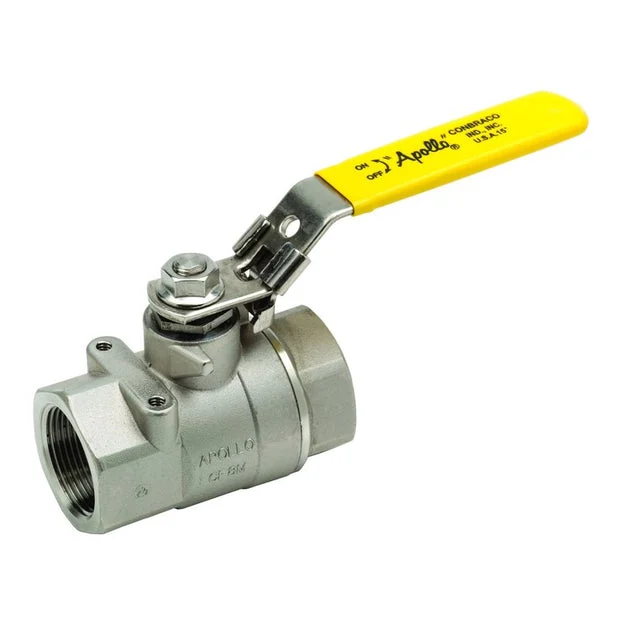

The Apollo 76-100 Series two-piece, standard port ball valve features corrosion-resistant stainless steel construction with a standard lever handle and mounting pad for easy actuator mounting. Rated for 2000 CWP (psig) and 150 psig for saturated steam. Features female NPT threads on both ends for use with male threaded pipes and a stainless steel latch-lock lever and nut. Vacuum service to 29 inches Hg. This 1/4″ valve is MSS SP-110 compliant.
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blowout-proof stem design
- Adjustable packing gland
- Stainless steel lever and nut
- Meets NACE MR0175 (2000) & MR0103 (2012)
- NSF/ANSI 61 Section 8, Annex G
- NSF-372, Drinking Water System Components – Lead Content
Specifications
| Model Number | 7610127A |
|---|---|
| Size | 1/4 IN |
| End connection | Female |
| Material | Stainless Steel |
| Port type | Standard Port |
| Pressure | 600 CWP |
| Handle type | Stainless Steel Latch Lock |
| Piece | 2 Piece |
| Seal material | RPTFE |
| California residents | Warning: Prop65 Information applies. California Proposition 65 Warning |
| Collection | 76-100 |
