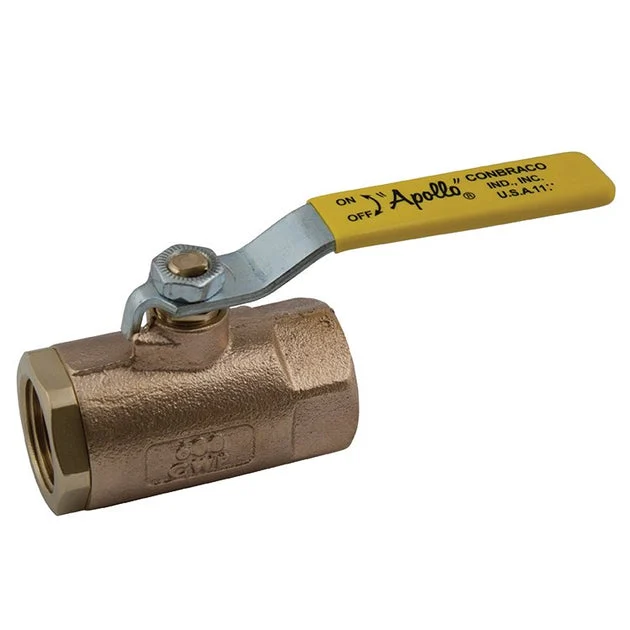

The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-140 model is a two-piece standard port ball valve featuring female NPT connections and a 316 Series stainless steel ball and stem. Cast and machined in Apollo’s South Carolina manufacturing plants, this 1/2″ valve provides trusted performance. Features 250# steam trim.
- Premium materials and heavy-duty construction
- Adjustable stem packing gland
- Blow-out proof stem design
- RPTFE Seats and MPTFE stem packing rings
- Chromium-plated ball
- 100% factory tested
- Maximum pressure: 600 psi CWP, 150 psi SWP
- Maximum temperature: 500 degrees F
- Vacuum service to 29″ Hg
- Manufactured in the USA, ARRA compliant
Specifications
| Model Number | 7014364 |
|---|---|
| Product type | 2-Piece |
| Size | 1/2 IN |
| End connection | Female |
| Material | Bronze |
| Port type | Standard Port |
| Pressure | 600 CWP |
| Handle type | Lever |
| Seal material | RPTFE |
| Options | Stainless Steel Ball and Stem/250# Steam Trim |
| Temperature | 500 DEG F |
| End to end distance | 2.25 IN |
| California residents | Warning: Prop65 Information applies. California Proposition 65 Warning |
| Collection | 70-140 |
